Rasmussen BFH Flaming Ember Burner and Grate Kit
By Rasmussen
2 Reviews
SKU
BFH-Config
Regular Price
$240.00
Special Price
$192.00
All Rasmussen vented pan burners are constructed from heavy duty 16-gauge steel and feature welded seams for maximum performance. The included pan filler completely covers the burner tubes while the gas pressurizes under the filler before breaking through to create a dancing, smoky wood-like flame.
Features
- Heavy Duty Construction - High quality 16-gauge steel construction for a superior fireplace option
- Hand Painted - Burner is hand painted with careful detail to provide a realistic fire feature
- Vented Unit - Designed for vented fireplace enclosures only, and must be used with a damper clamp

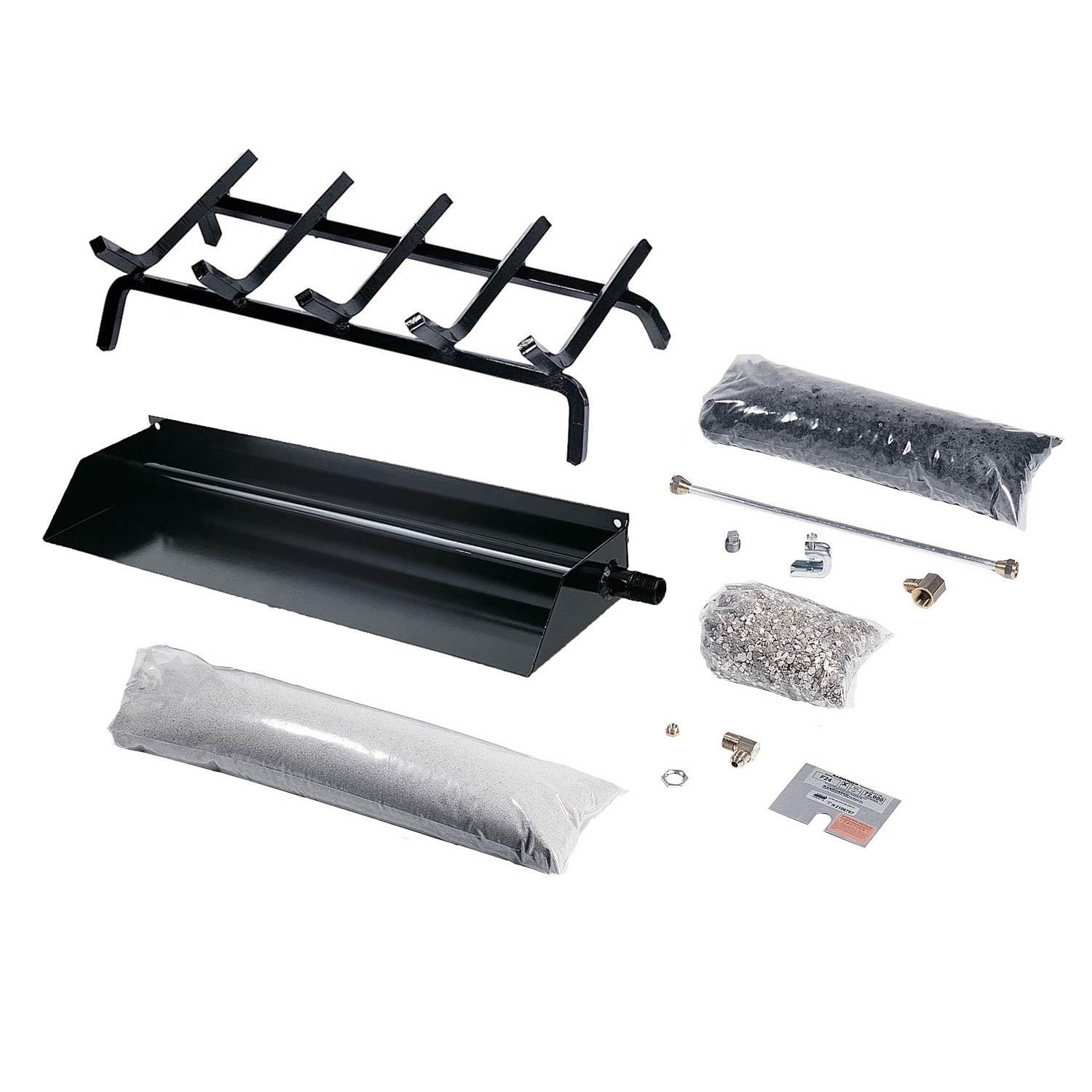

- Includes - Burner/grate, pan filler, ember magic, flexible stainless steel non-whistling connector kit, a damper clamp and instructions
- Specifications - See chart below
Configurable Options
- Log Size - Choose from (5) sizes: 15, 18, 20, 24 and 30-inches
Manufacturer | Rasmussen |
---|---|
Manufacturer Part Number | BFH-Config |
Burner Part Number | BFH |
Made in USA | No |
5
/ 52 Reviews
Minnette
December 06
We installed our kit this weekend and got the results we were after...Embers!!
Jim
March 13
Good equipment.
Downloads
Rasmussen Flaming Ember Burner/Grate Kit | |||||||
---|---|---|---|---|---|---|---|
Model # | Log Set Size | Actual Burner Size | Min. Footprint Dimensions to Center Assembly in Firebox | Weight | Certification | BTU/hr (NG / LP) | Fireplace Type |
B15FH | 12", 15" | 9.375" | 21" front / 15" rear / 13" depth | 24 lbs | Z21.84 | 32k / 27k | Single Faced |
B18FH | 18" | 12.375" | 24" front / 18" rear / 13" depth | 30 lbs | Z21.84 | 43k / 27k | Single Faced |
B20FH | 20", 21" | 14.375" | 26" front / 20" rear / 13" depth | 31 lbs | Z21.84 | 51k / 35k | Single Faced |
B24FH | 24" | 18.375" | 30" front / 24" rear / 13" depth | 40 lbs | Z21.84 | 72k / 37k | Single Faced |
B30FH | 27", 30" | 24.375" | 36" front / 30" rear / 13" depth | 47 lbs | Z21.84 | 75k / 50k | Single Faced |
